创建echart多个联动的示例代码

    网络     2018-12-21    2522

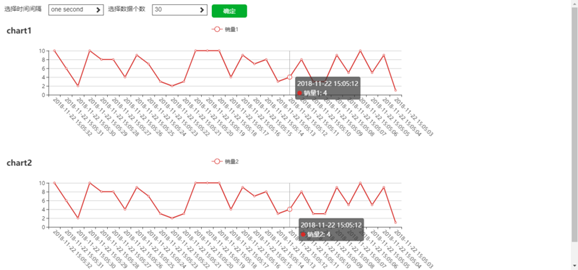

效果如下

html代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
<div class="contain">
    <div class="sel">
      <div class="sel1">
        <div class="top">
          <span>选择时间间隔</span>
          <div class="show">
            <span>one second</span>
            <i class="glyphicon glyphicon-chevron-right"></i>
          </div>
        </div>
        <div class="block">
          <div leap="second">one second</div>
          <div leap="minute">one minute</div>
          <div leap="hour">one hour</div>
          <div leap="day">one day</div>
          <div leap="week">one week</div>
          <div leap="month">one month</div>
          <div class="active" leap="year">one year</div>
        </div>
      </div>
      <div class="sel2">
        <div class="top">
          <span>选择数据个数</span>
          <div class="show">
            <span>5</span>
            <i class="glyphicon glyphicon-chevron-right"></i>
          </div>
        </div>
        <div class="block">
          <div leap="5">5</div>
          <div leap="10">10</div>
          <div leap="15">15</div>
          <div leap="20">20</div>
          <div leap="25">25</div>
          <div leap="30">30</div>
          <div leap="35">35</div>
        </div>
      </div>
      <div class="zybtn">确定</div>
    </div>
    <!-- 为ECharts准备一个具备大小（宽高）的Dom -->
    <div id="main" style="width: 1000px;height:300px;margin-top:45px;"></div>
    <div id="main2" style="width: 1000px;height:300px;"></div>
  </div>

css代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
body {
  margin: 0;
  padding: 0;
  background-color: #eee;
}
.contain {
  padding: 10px;
}
.sel {
  position: absolute;
  height: 250px;
  z-index: 10;
}
.sel>div {
  float: left;
  margin-right: 10px;
}
.top span {
  display: inline-block;
  width: 100px;
  height: 30px;
}
.top .show {
  width: 125px;
  height: 25px;
  float: right;
  border: 1px solid #444;
  padding-left: 5px;
  position: relative;
}

.block {
  float: right;
  position: relative;
  border-radius: 5px;
  padding: 5px;
  width: 120px;
  box-shadow: 1px 1px 5px #444;
  display: none;
  background-color: #fff;
}
.block>div {
  height: 25px;
  line-height: 25px;
  padding-left: 5px;
  border-radius: 5px;
  cursor: pointer;
}
.block>div:hover {
  background-color: #D3E3E5;
}
.block>div.active {
  background-color: #087C90;
  color: #fff;
}
.zybtn {
  width: 80px;
  height: 30px;
  border-radius: 5px;
  background-color: #46AD08;
  line-height: 30px;
  text-align: center;
  color: #fff;
  cursor: pointer;
}
i.glyphicon {
  top: 3px;
  right: 5px
}

js代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
